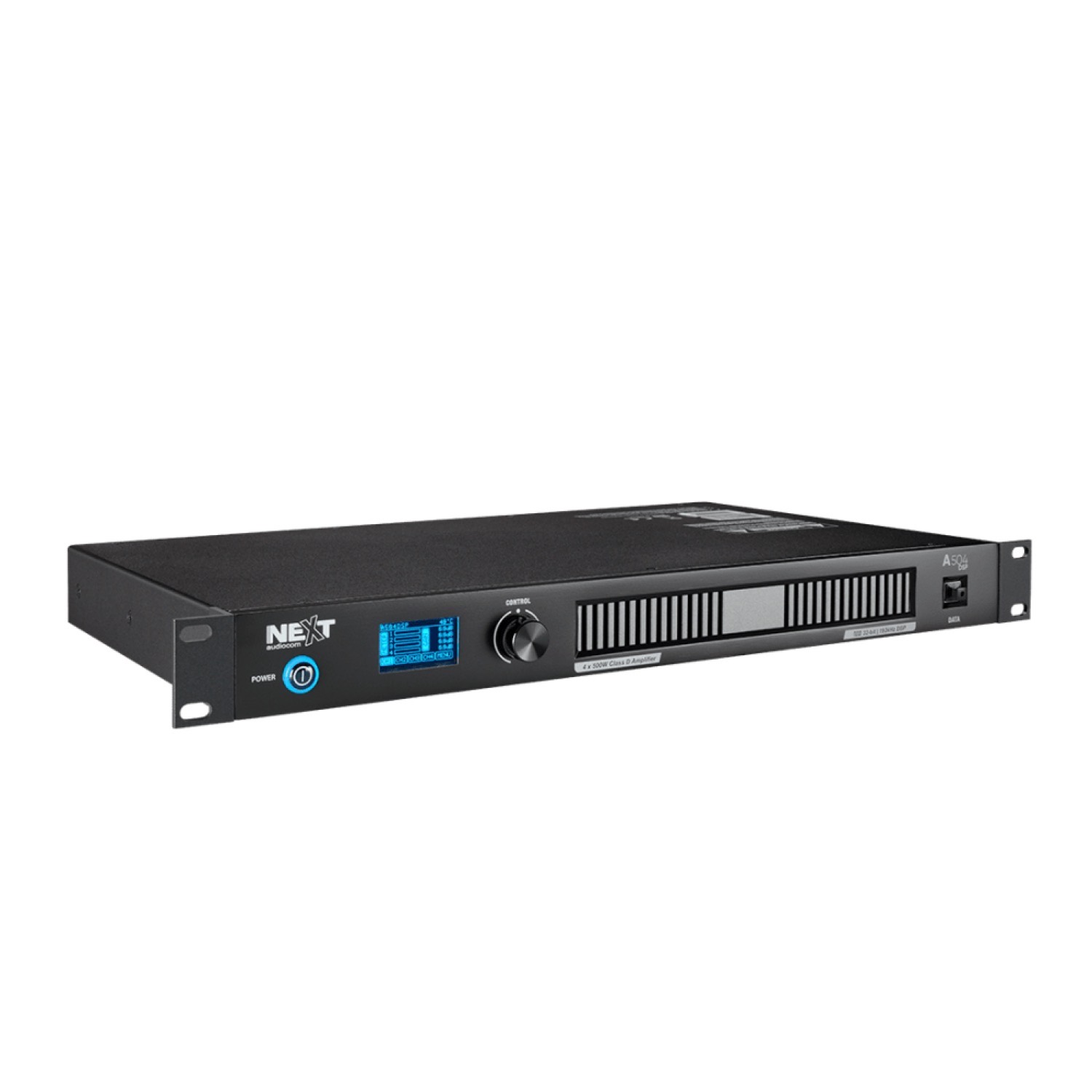

Next Audio COM A504 DSP Amplifier
The A504DSP combines a lightweight, 4 x 500W (2 x 1000W) amplifier, with a powerful DSP engine that can be configured to suit a wide range of tasks, without the need for additional equipment, to drive a wide range of loudspeaker systems. The close integration of processing and amplification allows the DSP to monitor and better adapt to amplifier behavior, making dynamics processing far more accurate and effective than that typically achieved with separate components.
Product Information
| Manufacturer Link | |
|---|---|
| Product Type | Class D Amplifier with DSP |
| Frequency Response | 20Hz – 20kHz (+0 / -1dB) |
| Amplifier Technology | Class D |
| Number of Amp Channels | 4 Channels |
| Amplifier Power - Stereo 8Ω | 4 x 250W |
| Amplifier Power - Stereo 4Ω | 4 x 500W |
| Amplifier Power - Bridge 8Ω | 2 x 1000W |
| Amplifier Power - 100V | 2 x 1000W |
| Amplifier Gain | 34dB±0.5dB |
| Speaker Output | 4Ω – 16Ω | 100V |
| Damping Factor | >180 |
| Thd+N | <0.15% |
